fischertechnik TXT controller 522429

fischertechnik TXT controller 522429

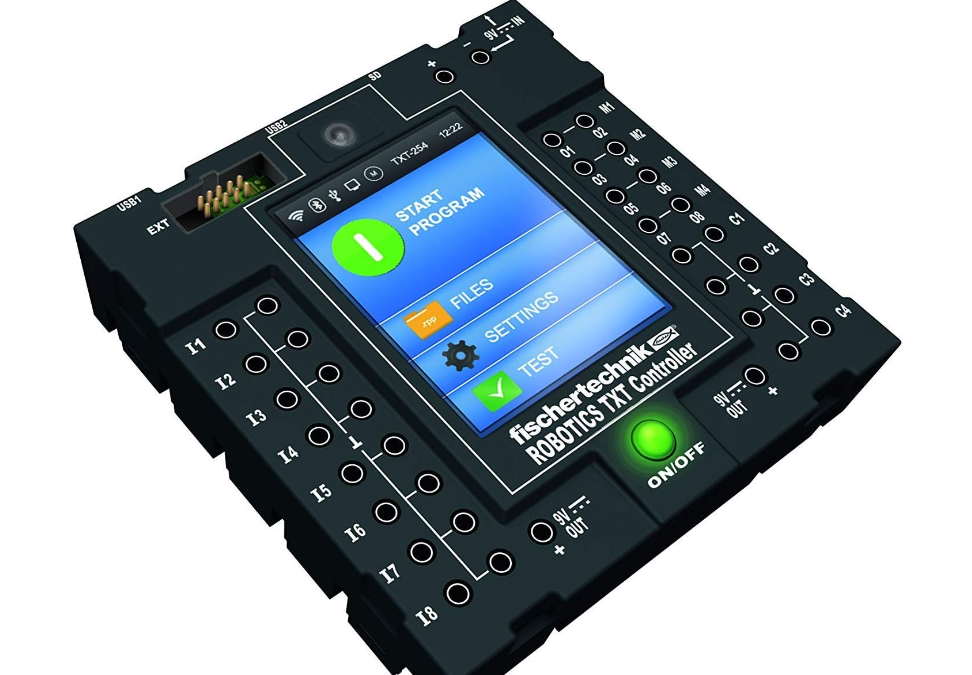

The compact Robotics txt controller (90x90x25 mm) can be controlled easily with the color 2.4” touch display. The combined Bluetooth / wife RF module provides the perfect, wireless interface for numerous applications. The numerous interfaces also include a USB host port for USB sticks and other components such as the fischertechnik USB camera. Integrated micro SD card slot allows expansion of memory capacity. Controllers can be coupled. Dual processor arm Cortex A8 (32bit/600MHz) + Cortex M3. Memory capacity: 256 MB DDR3 ram, 64 MB flash, memory expansion: micro SD card slot. Display: color 2.4 inch touch display (320x240 pixels). 8 Universal inputs: digital / analog 0-9vdc, analog 0–5kω, 4 high speed numerical inputs: digital, frequency up to 1Khz, 4 motor outputs 9V/250mA (Max: 800 ma): speed infinitely controllable, short-circuit proof, alternative 8 single outputs for components such as lights. Combined Bluetooth / wife RF module: BT 2.1 EDR+ 4.0, wlan 802.11. Infrared Receiver diode: for fischertechnik control set transmitter. Usb 2.0 client: mini USB port for connection to pc, USB host interface: usb-a port for fischertechnik USB camera, USB sticks, etc., camera interface: over USB host, Linux camera driver integrated into operating system, 10-pin male connector for additional inputs and outputs as well as i2c interface, integrated loudspeaker, integrated real time clock with replaceable buffer battery: for capturing measured values within a defined period of time, linux-based, open source operating system. Programming possible with robe Pro, c-compiler, pc-library, and many others. Link to smartphone / tablet pc‘s via Bluetooth or wlan, allowing use as terminals for controller. Programming using robo-pro software. Power supply: 9V DC socket 3.45 mm or fischertechnik 2.5 mm sockets (for set of rechargeable batteries).

Safety Warning

not appropriate for children under the age of 3
